RED KOMODO EXPANDER MODULE 科莫多拓展套件 TC口 Genlock口 GPI口
￥ 4999.00元
相關推薦
7999.00
RED V-RAPTOR 迅猛龍肩托 快裝板平臺 QUICK RELEASE PLATFORM PACK SKU 790-0692
359999.00
RED V-RAPTOR XL [X] 霸王龍X SKU 710-0394 電影機 全域快門 3540萬像素 8K120P 4K240P
2699.00
RED PRO CFEXPRESS 1TB 存儲卡 CEB原裝卡 SKU 750-0102
7999.00
RED PRO CFEXPRESS 2TB CEB 存儲卡 閃存 原廠 原裝卡 SKU 750-0100
23500.00
RED DSMC3 RED TOUCH 7.0" 7英寸監視器 SKU 730-0029 1300nits 322ppi

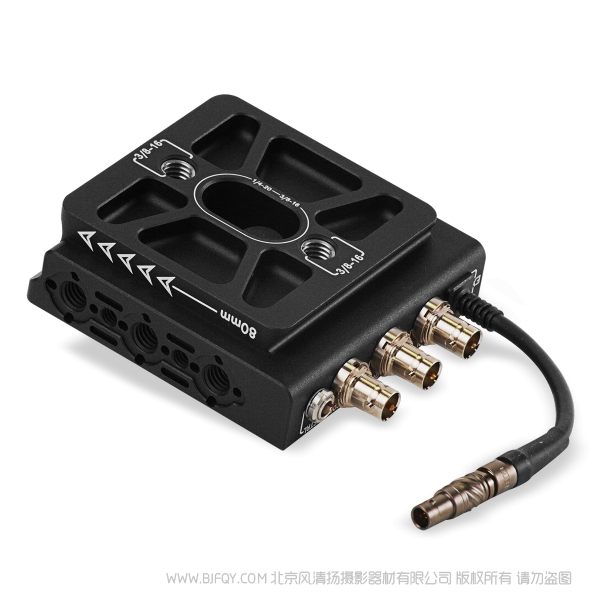

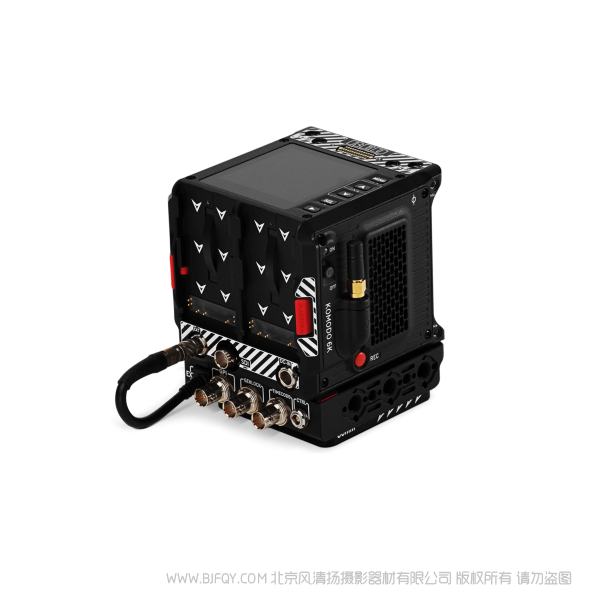

The KOMODO? Expander Module is designed to support professional shooting configurations. With options for video and communication connections, including Genlock (BNC), GPI (BNC), Timecode in (BNC) and CTRL (4-pin). The KOMODO Expander Module creates the flexibility to support a vast array of options when it comes to how users will rig their KOMODO.
Constructed from lightweight and durable aluminum alloy, the module provides a reliable option for multiple rigging solutions with multiple ?-20 and 3/8-16 mounting points and ARRI-style locating holes along with an integrated quick-release plate.?
KOMODO?擴展模塊專為支持專業拍攝配置而設計。具有視頻和通信連接選項，包括Genlock (BNC)， GPI (BNC)， Timecode in (BNC)和CTRL(4引腳)。該科莫多擴展模塊創建的靈活性，以支持選項的巨大陣列，當涉及到用戶將如何操縱他們的科莫多。
該模塊由輕質耐用的鋁合金構成，為多個索具解決方案提供了可靠的選擇，具有多個?-20和3/8-16安裝點和ari式定位孔以及集成的快速釋放板。
DIMENSIONS 長寬高 | Height: 1.25 in (32 mm)? Width: 3.75 in (95 mm)? Depth: 4.25 in (108 mm)? |
|---|---|
WEIGHT? 重量 | Approximately 0.9 lbs (408 g)?? |
MATERIALS? 材質 | Aluminum? |
MOUNTING TO KOMODO? 固定螺孔 | 1x ?-20 and 1x 3/8-16 captive mounting screw? |
CONNECTION TO KOMODO? 通信針腳 | 9-pin EXTENSION port?? |

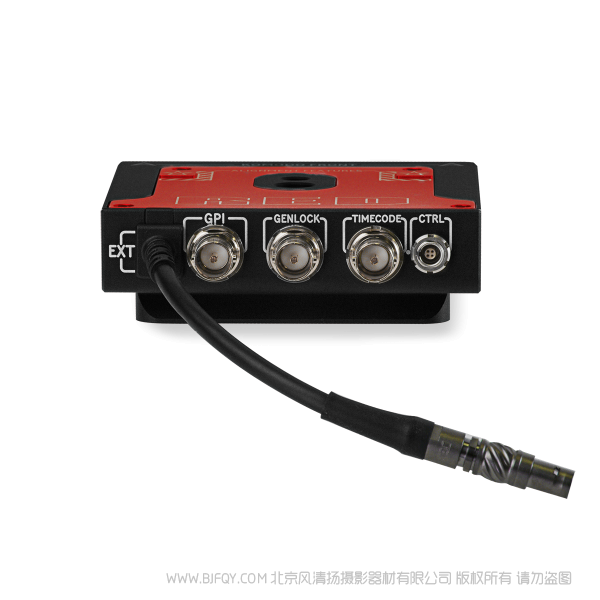

CONNECTORS? 拓展接口 | GPI (BNC)? Genlock (BNC)? Timecode In (BNC)? CTRL (Tally OUT /RS-232 Rx and Tx) (4-Pin 00)? |

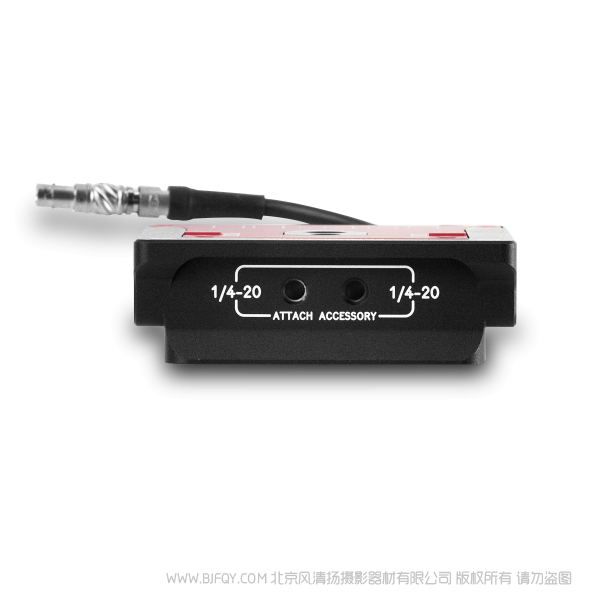

ARM MOUNTING? 拓展螺絲孔 | 6x ?-20 and 8x 3/8-16 mounting holes with? |
INTEGRATED QUICK RELEASE PLATE ??支持快裝板 | Compatible with the GDU 80mm Touch N Go? |
OPERATING TEMPERATURE? 工作溫度 | 0°C to 40°C (32°F to 104°F)?? |
STORAGE TEMPERATURE? 存儲溫度 | –20°C to 50°C (–4°F to 122°F)?? |
OPERATING HUMIDITY? 工作濕度 | 0% to 85%, non-condensing? |
STORAGE HUMIDITY? 存儲濕度 | 0% to 85%, non-condensing? |
Tech specs reflect both current and projected information. Everything is subject to change.
